BOYO VTC703AHD-Q4 : Wireless Vehicle AHD Backup Camera System with 7” Monitor and Backup Camera for Car, Truck, SUV and Van (4 Channel)
- WIRELESS AHD BACKUP CAMERA SYSTEM – Package includes a high-definition 7-inch monitor with a rear-view camera for an all-in-one solution. Works with all 9V and 36V vehicles.
- Multi-CAMERAS (4 pcs included) – Universal wireless backup cameras with integrated mounting bracket. Mounts to any flat surface. CMOS image sensor with 1920 (H) x 1080 (V) resolution and a 110° wide viewing angle(H). Weather-proof housing with IP68 waterproof rating.

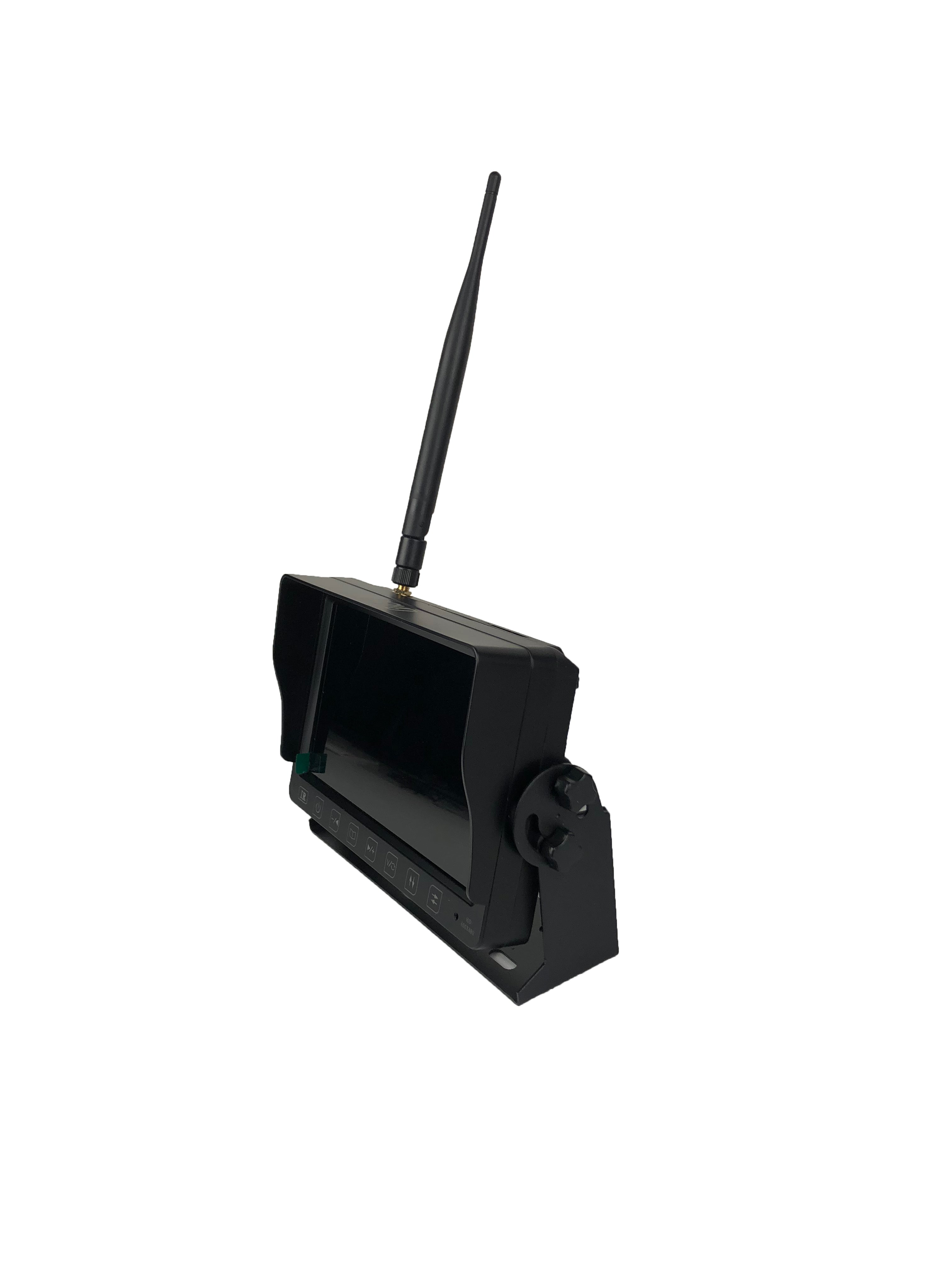

- MONITOR – 7" widescreen HD LCD monitor with 1024 (H) x 600 (V) resolution. The monitor includes a U-shaped bracket for dash mounting and transmits a 2.4GHz digital wireless signal.
- Built-in DVR for Audio/Video Recording up to 4 Channels
- QUICK AND EASY INSTALLATION – BOYO provides detailed step-by-step instructions as well as installation-friendly “quick connectors” to make adding your new camera and monitor as easy as possible.

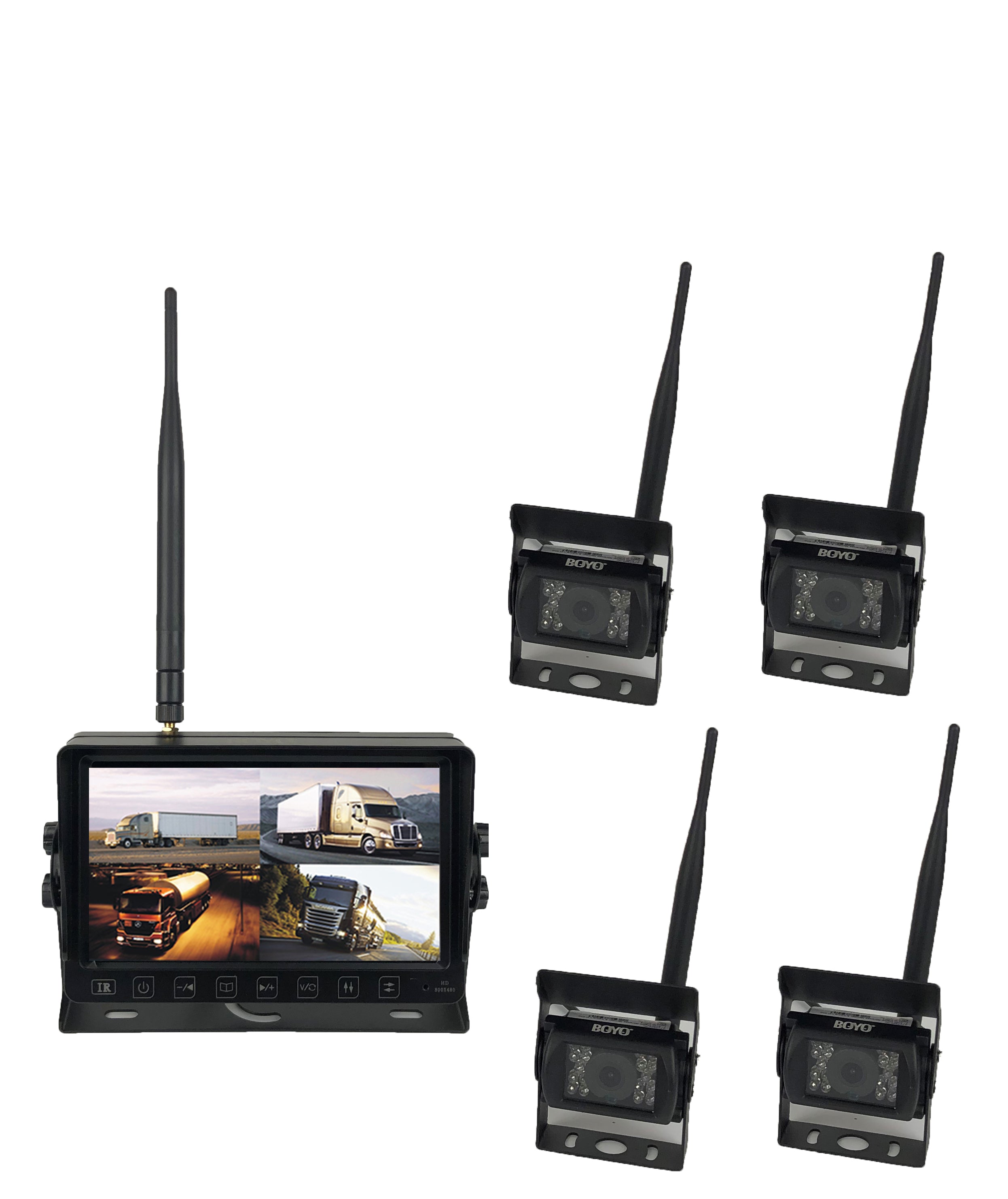

- PACKAGE INCLUDES – (1) monitor, (4) camera, (1) U-shape monitor bracket
MONITOR FEATURES:
• IPS, TFT, LCD Panel, 1080p HD Quality
• Panel: 7 inch Digital Panel Screen
• Resolution: 1024 (H) x 600 (V)
• Display format: 16:9
• NTSC/PAL compatible
• Built-In Speaker
• Parking lines on/off (Selectable)
• Reverse / Non-Reverse Image (Selectable)
• 2.4GHz Digital Wireless Signal
• Wireless Transmit Range at about 300 feet
• Working temperature: -4°F ~ 158°F
• Working Voltage Range: 9VDC ~ 36VDC
• Built-in DVR for Audio/Video Recording up to 4 Channels
• Power the monitor through a cigarette plug
• Works as Single, Dual, or Quad Screens
CAMERA FEATURES:
• Image Sensor: 1/4” FHD CMOS sensor
• Effective Pixels: 1920 (H) x 1080 (V)
• Waterproof Rating: IP68
• Viewing Angle: 110°(H), 85°(V), 140°(D)
• Auto White Balance
• Built-in Microphone
• IR Night Vision Visible Distance: about 12feet
• Reverse / Non-Reverse Image (Selectable)
• 2.4GHz Digital Wireless Signal
• Wireless Transmit Range at about 300 feet
• Working temperature: -4°F ~ 158°F
• Working Voltage Range: 9VDC ~ 36VDC
• No high speed dropouts
• Trigger function
• NTSC or PAL compatible (Auto Switch)
